Afwasmiddel vulmachine

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

bestek

---

afwasmiddel voor afwasmiddel
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Omschrijving

---

CE van EU
ISO 9001
Voldoe aan de vereisten van GMP
longlife of service, low mainteinance rate

Hoofdfunctie

---

De machine is een geavanceerde, zeer nauwkeurige vulmachine die het proces van het tellen, vullen en afdekken van flessen automatisch kan voltooien.

Kenmerken

1. Compact gestructureerd, mooi, eenvoudig te bedienen en zeer geautomatiseerd.

2. componenten contact met materiaal zijn gemaakt van roestvrij staal, gemakkelijk schoon te maken.

3. Het vulvolume wordt geregeld met filmkleppen om nauwkeurigheid te garanderen.

4. Hoge snelheid en zeer nauwkeurige vulkleppen zorgen voor geen lekkage.

5. Het is uitgerust met een zeer effectief cap-voersysteem.

Taaloptie

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Belangrijke kenmerken:

---

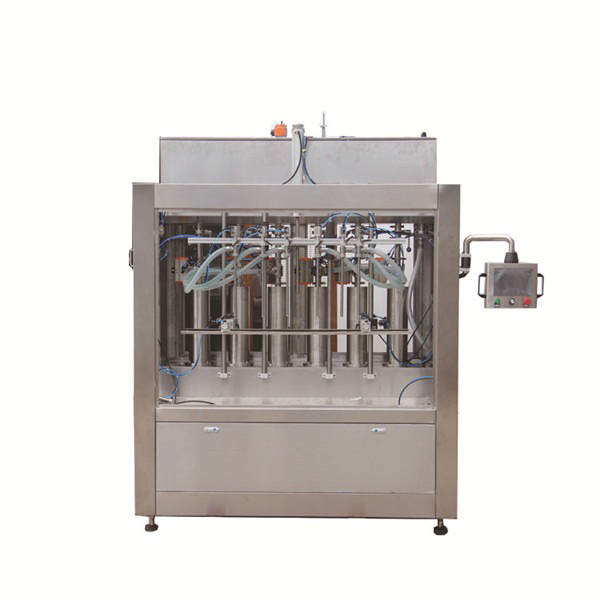

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Kan vele parameters onthouden, nuttig voor verschillende gewijzigde specificaties, alle vullende dosering kan worden aangepast via touchscreen.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Hoofd technische parameter

---

Item	Naam	Technische parameter
01	Machinedimensie (L * W * H)	2200mm * 1400mm * 2800mm
02	Machine gewicht	Ongeveer 1400 kg
03	Binnendiameter opening container	≥φ35mm
04	Geschikte container	1 liter. 2 liter
05	Container hoogte	80-350mm
06	Stroomvoorziening	AC 380V; 50Hz
07	macht	5kw
08	Vulnauwkeurigheid	≤ ± 1%
09	Luchtbron	0,6 MPa stabiele en schone perslucht
11	Aantal vulmondstukken	13
12	Transportband hoogte	900mm ± 50mm
13	capaciteit	≤3200 flessen / uur (neem water als test)
14	Fles in toevoerrichting	Van links naar rechts

snelle details

---

Type: vulmachine
conditie: nieuw
Application: Chemical
Verpakkingstype: Flessen
Verpakkingsmateriaal: hout
Automatisch cijfer: automatisch
Aangedreven Type: Pneumatisch
Voltage: 220v
Vermogen: 3KW
Plaats van herkomst: Shanghai. China (vasteland)
Merknaam: VKPAK
Afmeting (L * B * H): 2200 mm * 1400 mm * 2800 mm
Gewicht: 1400
Certificering: CE
Service na verkoop: Ingenieurs beschikbaar voor het onderhoud van machines in het buitenland
materiaal: SS304
PLC: Panasonic
Aanraakscherm: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
